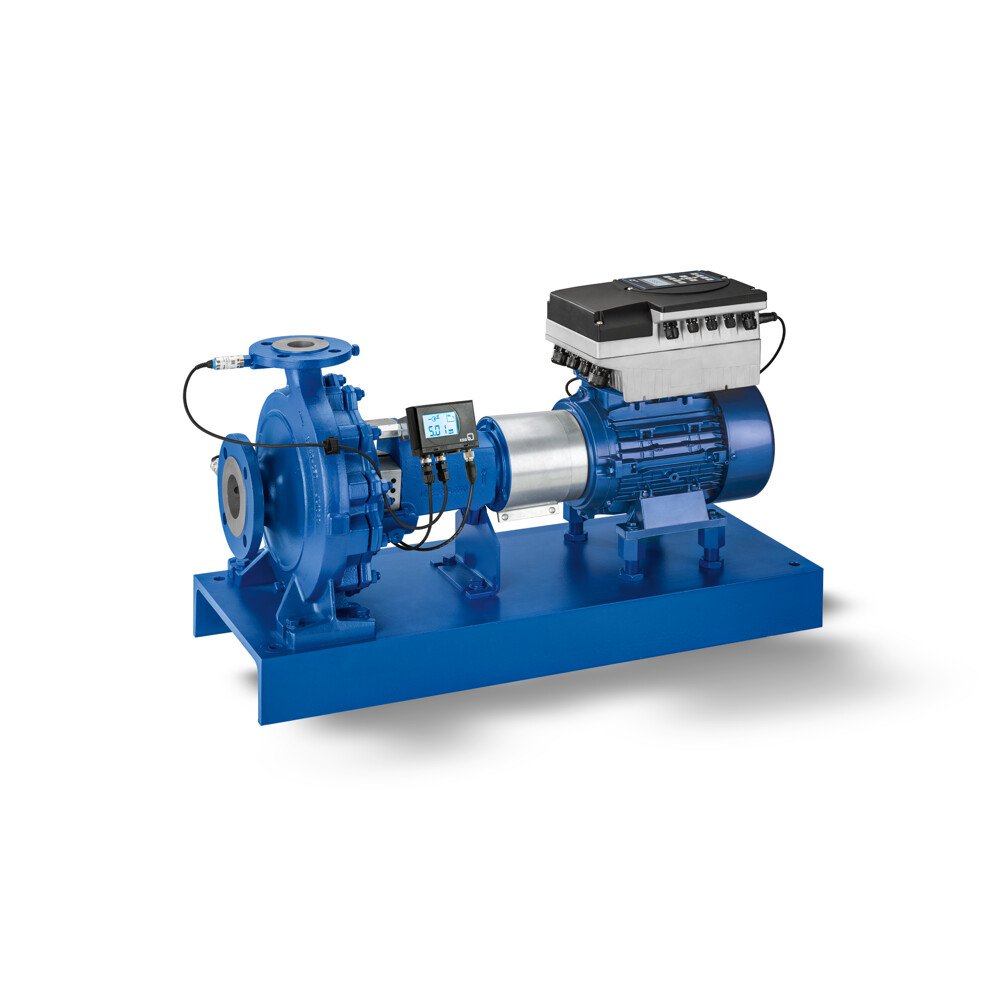

| Etanorm | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 1368 m³/h | Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. |
| Max. head | 160 m | Max. allowed working pressure | 16 bar | Max. allowed fluid temperature | 140 °C | Temperature | -30 to 250 C | Speed | up to 2900 rpm |

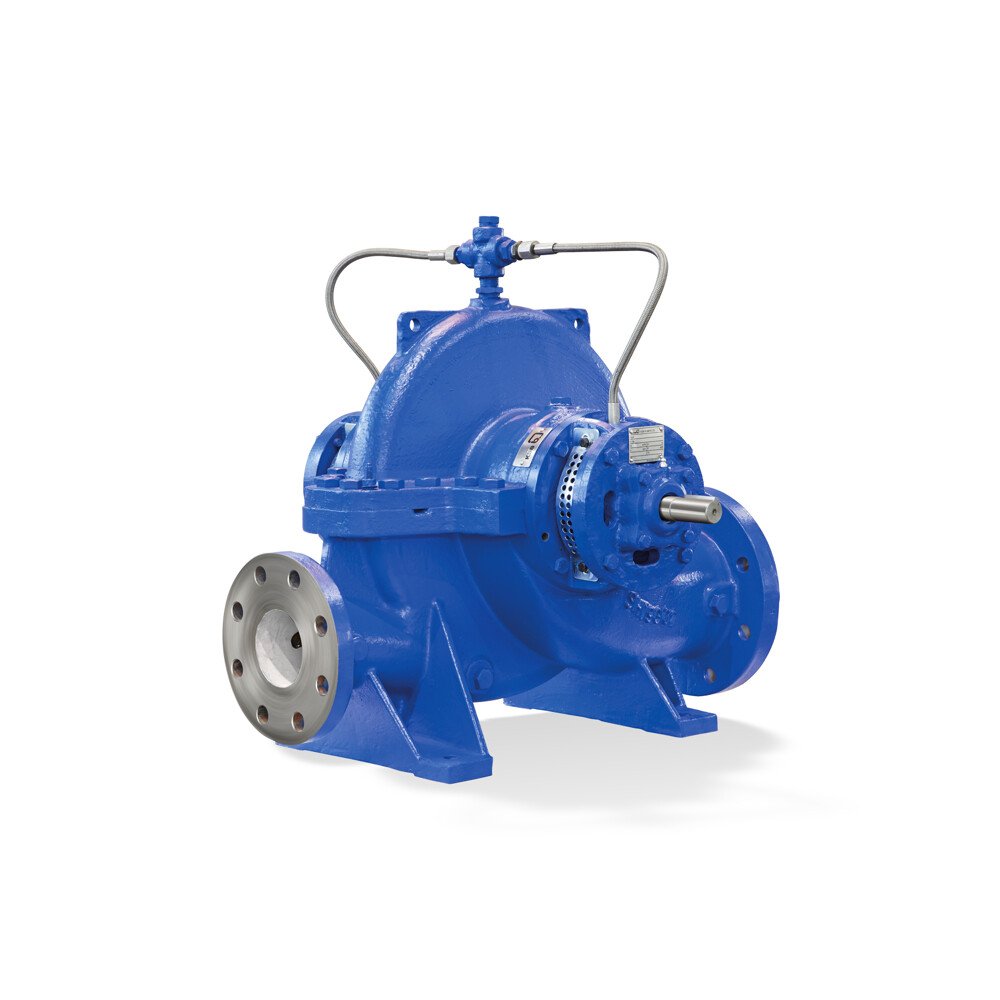

| MEGA | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 3200 m³/h | Single-stage, horizontal, with axially spilt volute casing, with integrally cast pump feet and double-entry radial impeller. Nominal diameter of the discharge nozzles from 80 mm to 350 mm |
| Max. head | 90 m | Max. allowed fluid temperature | 80 °C |
| KNCPP | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 2520 m³/h | End suction pump for paper and pulp applications with a dry solids content of up to 8 %. KNCPP are horizontal, single-stage, single-entry process pumps, usually with open impeller, with radially split volute casing, in back pull-out design. |
| Max. head | 105 m | Max. allowed working pressure | 16 bar | Max. allowed fluid temperature | 180 °C |
| CPK SO | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 260 m³/h | Horizontal, radially split volute casing pump in back pull-out design, with semi-open impeller, single-entry, single-stage, to EN 22858 / ISO 2858 / ISO 5199. Complemented by pumps of DN 25 and above. |
| Max. head | 140 m | Max. allowed working pressure | 25 bar | Max. allowed fluid temperature | 200 °C |
| Mega CPK | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 3300 m³/h | Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to DIN EN ISO 5199, dimensions to DIN EN ISO 2858, complemented by nominal diameters DN25 and ≥DN200, in large range of material and seal variants; also available as a variant with "wet" shaft and conical seal chamber. ATEX-compliant version available. |
| Max. head | 162 m | Max. allowed working pressure | 25 bar | Max. allowed fluid temperature | 400 °C |
| WKL | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 26.3 m³/h | Horizontal, radially split, multistage ring-section pump with radial impellers. Sealing between the stages is provided by gaskets. The stages are clamped together by tie bolts. Pump supports are integrally cast at the bottom of the suction casing and discharge casing. |
| Max. head | 380 m | Max. allowed working pressure | 25 bar | Max. allowed fluid temperature | 140 °C |

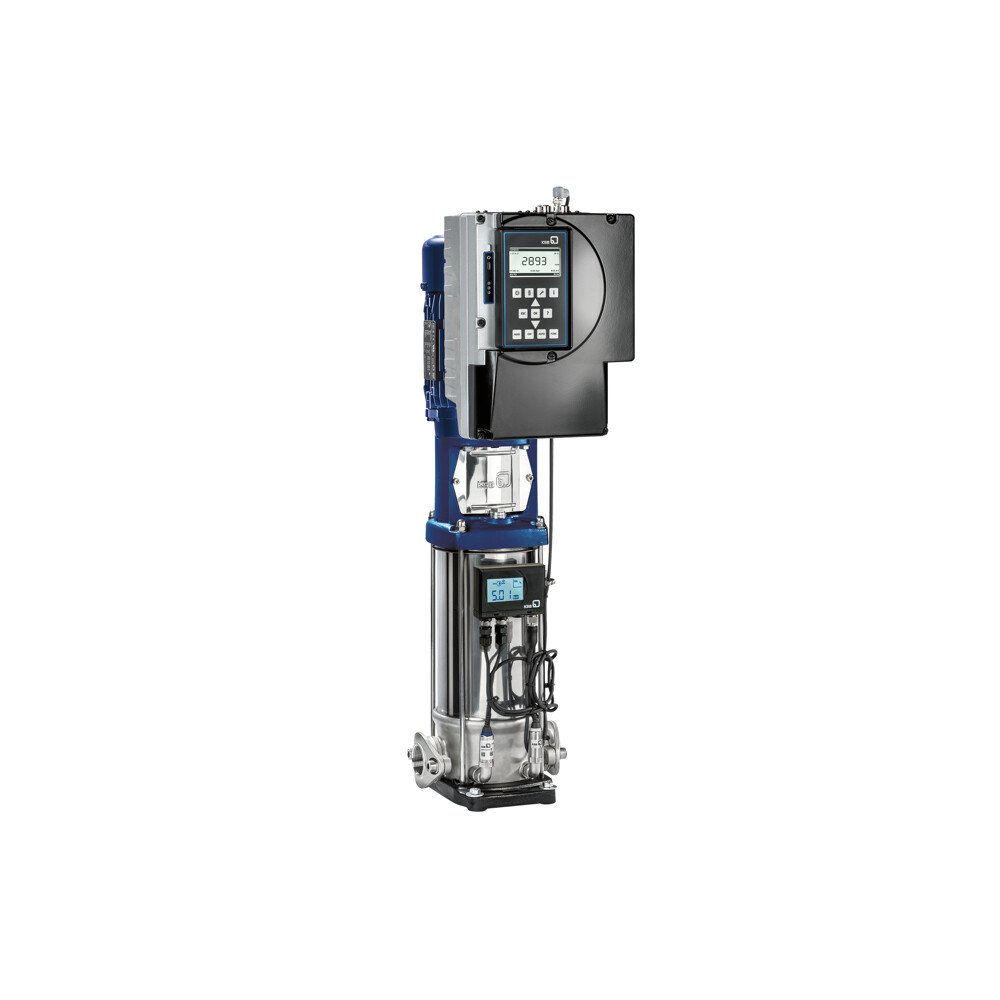

| Movitec | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 192 m³/h | Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available. |
| Max. head | 415 m | Max. allowed working pressure | 40 bar | Max. allowed fluid temperature | 140 °C | Temperature | -30 to 140 C | Speed | up to 2900 rpm |

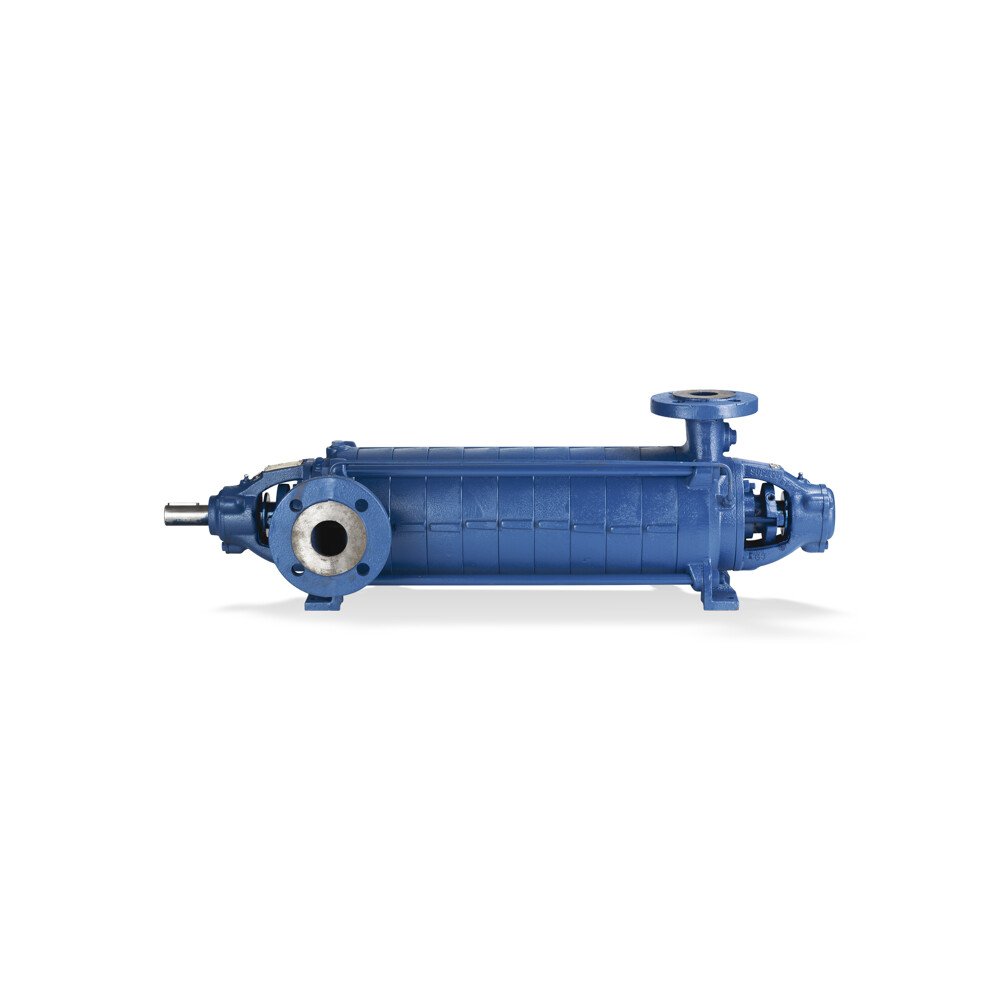

| HDA | Technical Data | Main Applications | |
|---|---|---|---|
 |
Max. flow rate | 324 m³/h | Horizontal, radially split, multistage ring-section pump with single-entry radial impellers. |
| Max. head | 1300 m | Max. allowed working pressure | 120 bar |

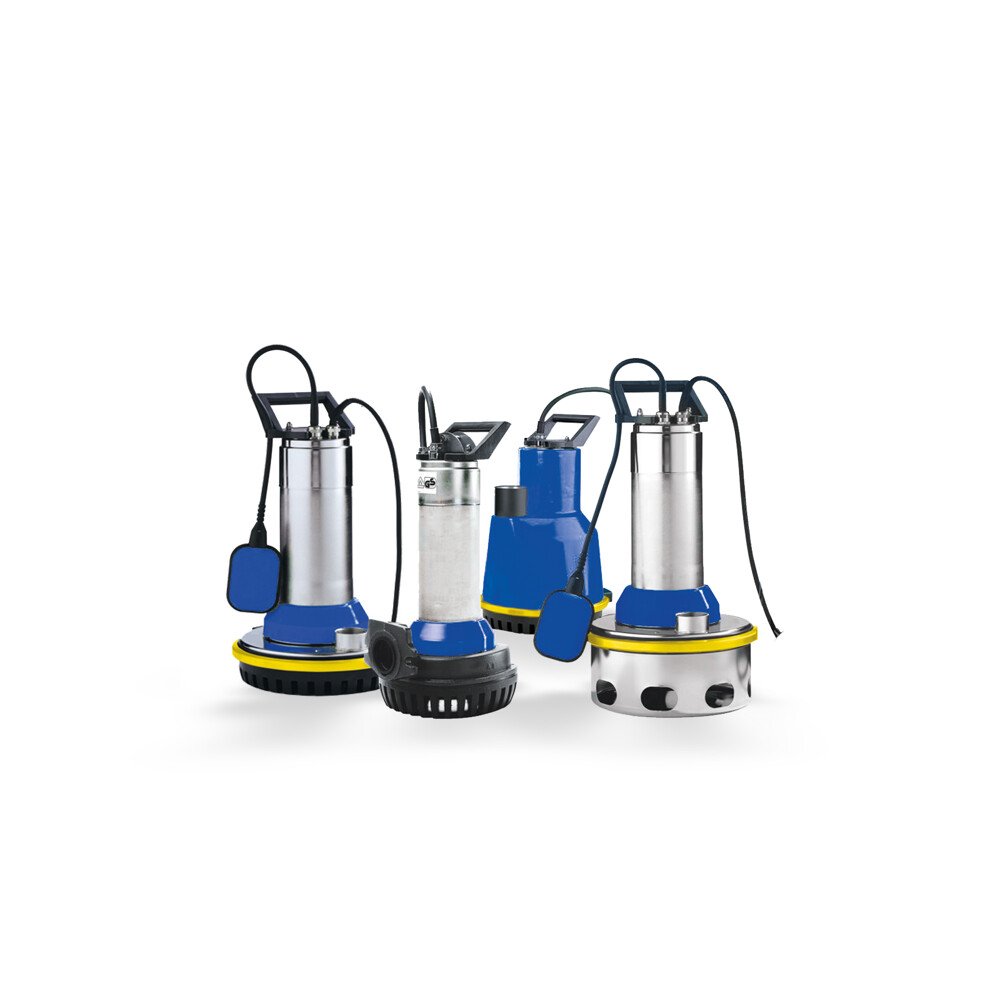

| AmaDrainer 4 / 5/AmaDrainer 80 / 100 | Technical Data | Main Applications | |
|---|---|---|---|
 |
AmaDrainer 4 / 5 | Max. flow rate 130 m³/h | AmaDrainer 4../5..: Vertical single-stage fully floodable submersible motor pump in close-coupled design, IP68, with or without level control, max. immersion depth: 7 m. AmaDrainer 80/100: Vertical single-stage fully floodable submersible motor pump in close-coupled design, IP68, with or without level control, max. immersion depth: 10 m. |
| Drainage | Max. head 26 m | Disposal | Max. allowed fluid temperature 40 °C |

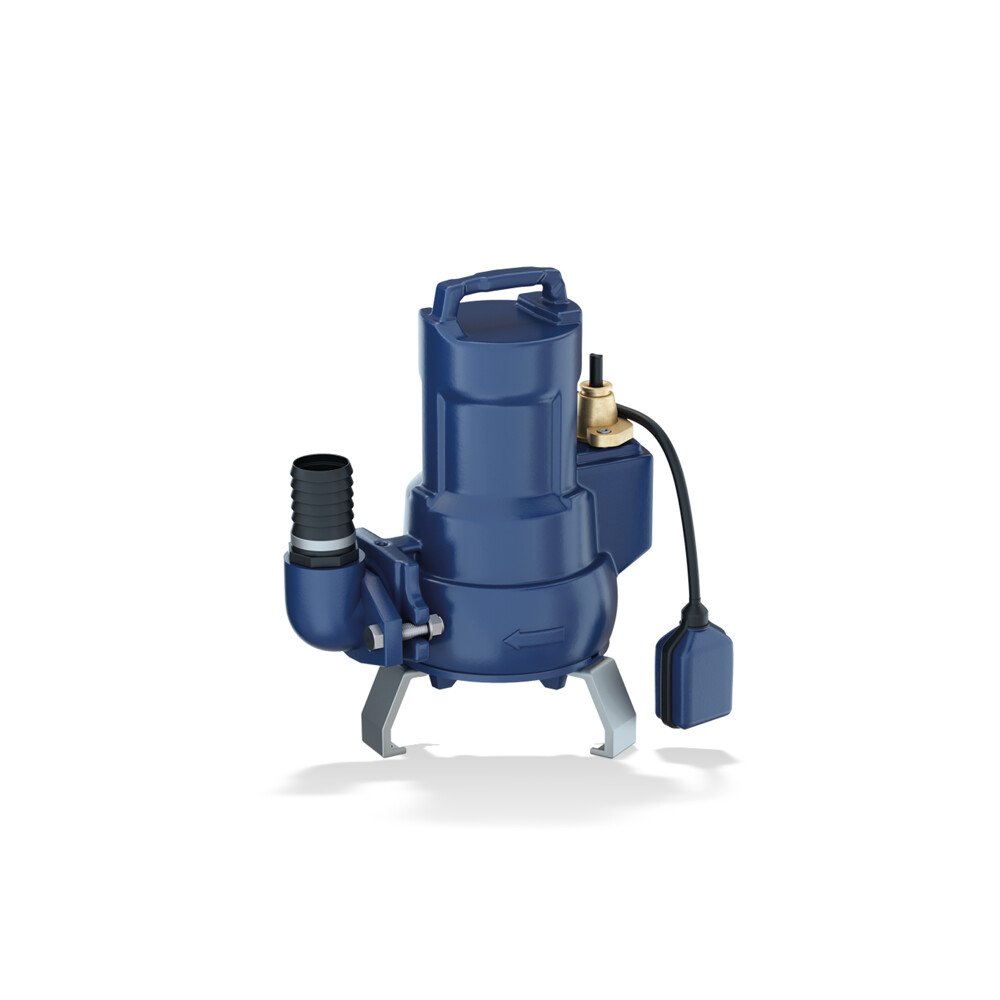

| AmaPorter | Technical Data | Main Applications | |
|---|---|---|---|
 |
Pumping station | Max. flow rate 130 m³/h | Vertical single-stage submersible motor pump (grey cast iron) for waste water in close-coupled design for wet installation, stationary or transportable version. |
| Domestic waste water | Max. head 37 m | Waste water transport | Max. allowed working pressure 16 bar | Draining of pits, shafts, etc. | Max. fluid temperature 40 °C | Temperature | -30 to 140 C | Speed | up to 2900 rpm |

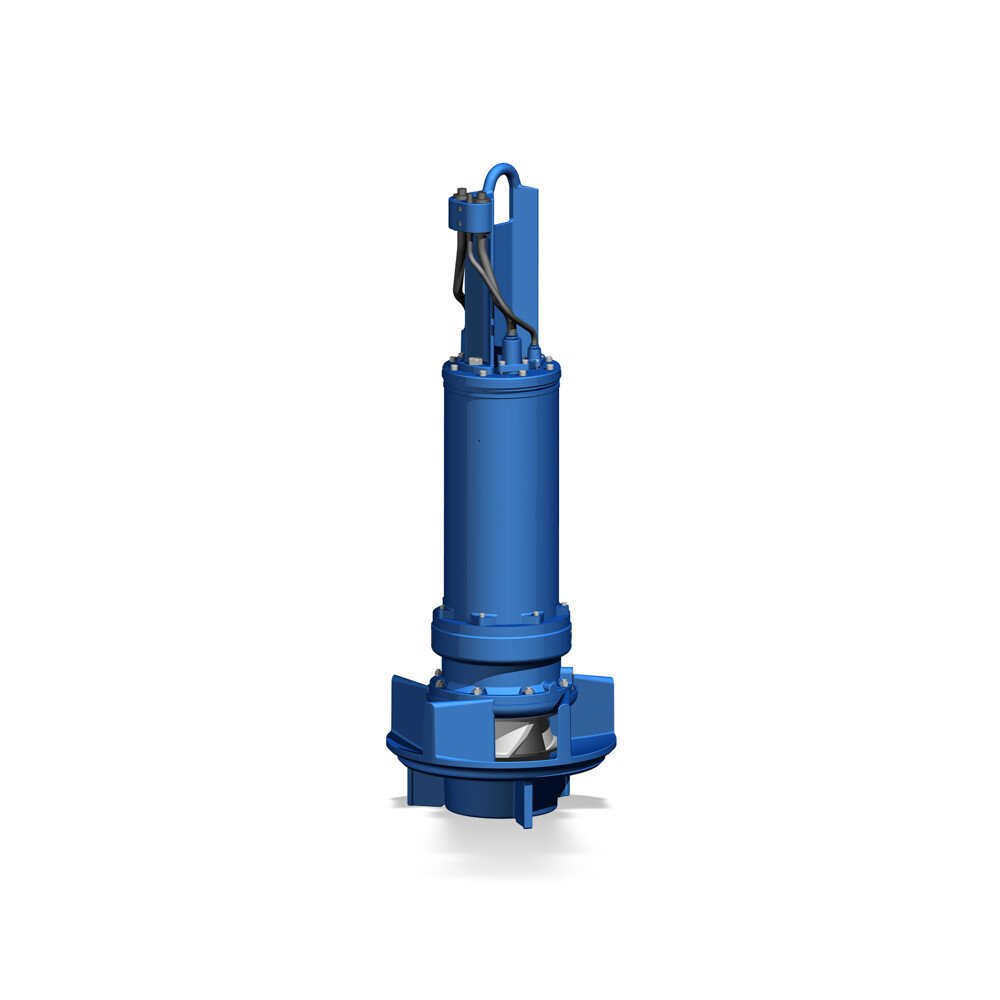

| Amacan K | Technical Data | Main Applications | |
|---|---|---|---|
 |
Irrigation pumping stations | Max. flow rate 7200 m³/h | Wet-installed submersible motor pump for installation in discharge tubes, with channel impeller, single-stage, single-entry. ATEX-compliant version available. |
| Drainage pumping stations | Max. head 30 m | Stormwater pumping stations | Max. allowed working pressure 16 bar | Water pollution control | Max. allowed fluid temperature 40 °C |

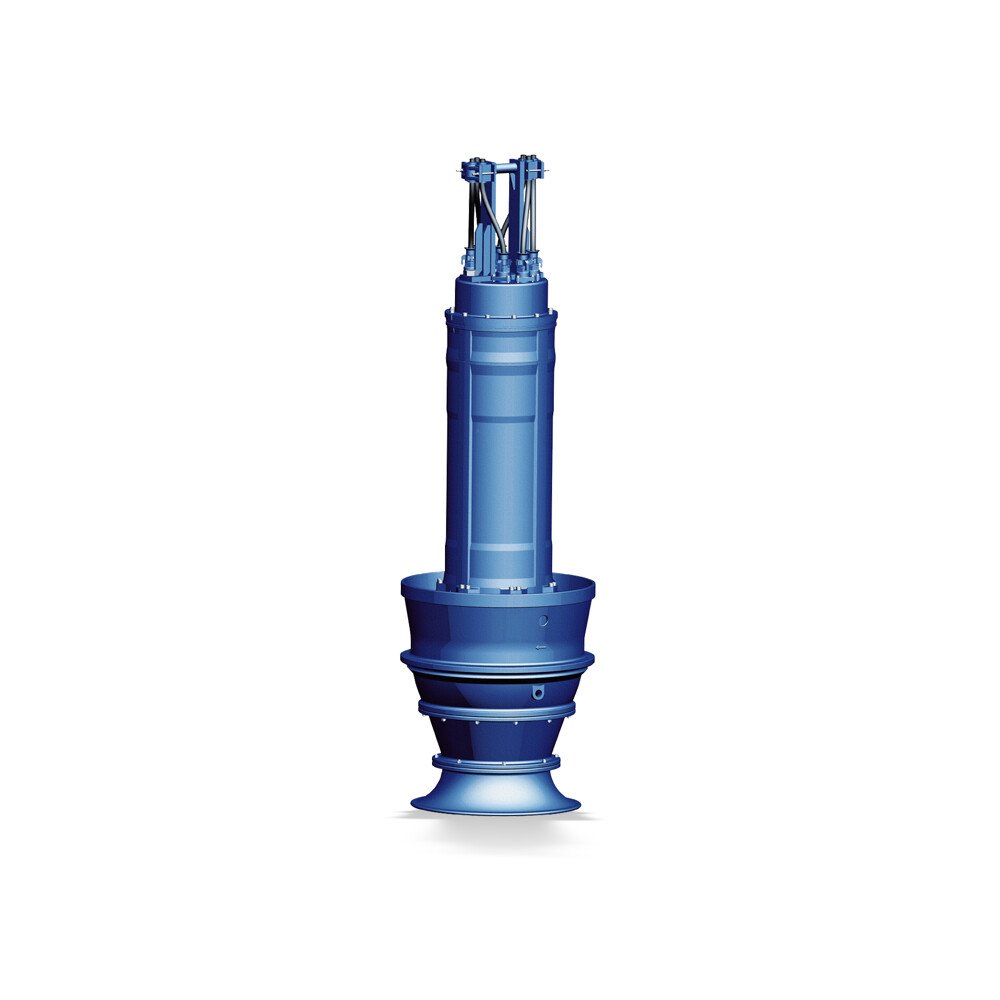

| Amacan P | Technical Data | Main Applications | |
|---|---|---|---|
 |
Irrigation pumping stations | Max. flow rate 25200 m³/h | Wet-installed submersible motor pump for installation in discharge tubes, with axial propeller in ECB design, single-stage, single-entry. ATEX-compliant version available. |
| Drainage pumping stations | Max. head 12 m | Stormwater pumping stations | Max. allowed fluid temperature 40 °C | Raw water pumps and clean water pumps in waterworks and waste water treatment plants |
| Amacan S | Technical Data | Main Applications | |
|---|---|---|---|
 |
Irrigation pumping stations | Max. flow rate 10080 m³/h | Wet-installed submersible motor pump for installation in discharge tubes, with mixed flow impeller, single-stage. ATEX-compliant version available. |
| Stormwater pumping stations | Max. head 40 m | Raw and clean water transport in water works | Max. allowed working pressure 16 bar | Cooling water pumps in power stations and industry | Max. allowed fluid temperature 40 °C |
| Amaline | Technical Data | Main Applications | |
|---|---|---|---|
 |
Recirculating activated sludge from the nitrification to the denitrification stage of activated sludge tanks | Max. flow rate 6700 m³/h | Wet-installed horizontal propeller pump with submersible motor, equipped with direct drive or spur gear, ECB propeller with rigid, fibre-repellent blades, bolt-free connection to the discharge pipe. Explosion-proof version available. |
| Economic handling of stormwater, river water, surface water and polder water at low heads | Max. head 3.5 m | Generating flow in water bodies | Max. allowed working pressure 16 bar | Max. allowed fluid temperature 40 °C |
| Amarex | Technical Data | Main Applications | |
|---|---|---|---|
 |
Waste water transport | Max. flow rate 330 m³/h | Vertical single-stage submersible motor pump for wet installation, with vortex impeller (F-max) or open dual-vane impeller (D-max), stationary or transportable version. Single-stage, single-entry close-coupled pump sets which are not self-priming. ATEX-compliant version available. |
| Waste water management | Max. head 42 m | Drainage systemss | Max. allowed working pressure 4 bar | Waste water treatment plants | Max. allowed fluid temperature 40 °C |

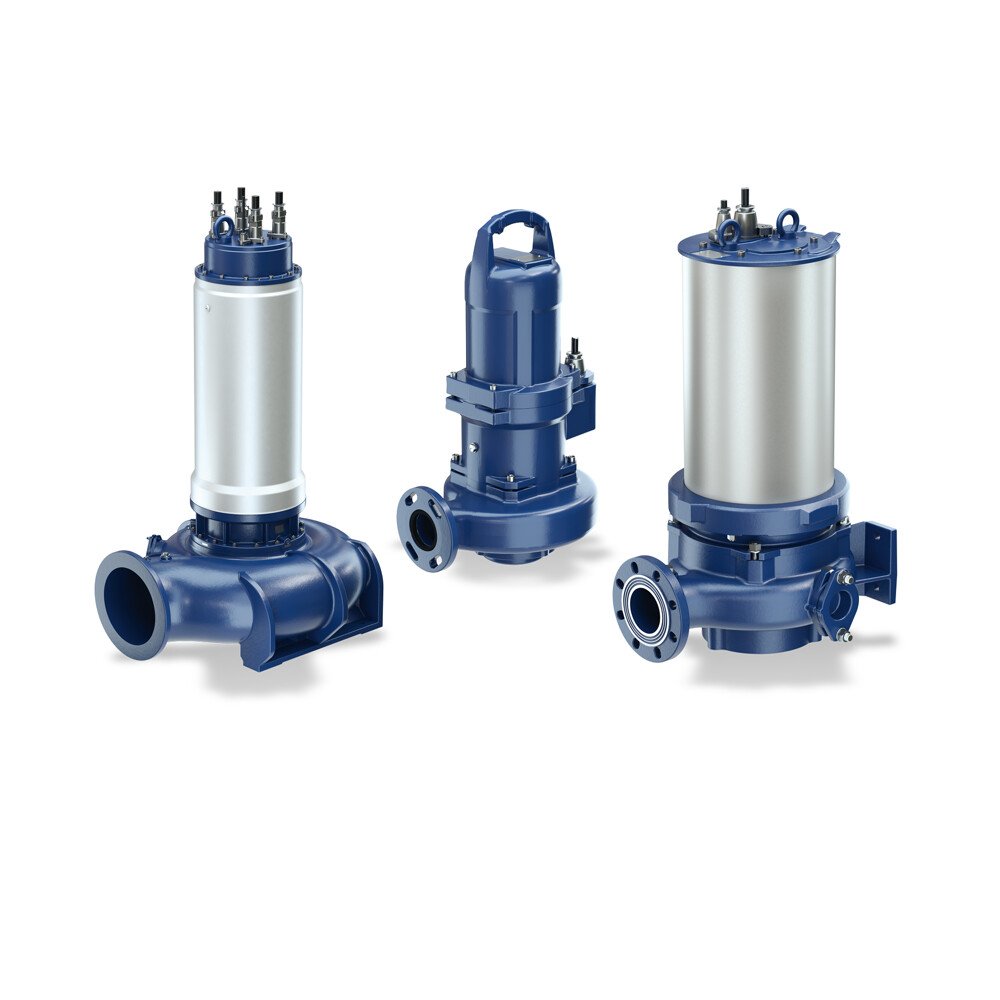

| Amarex KRT | Technical Data | Main Applications | |
|---|---|---|---|
 |
Waste water management | Max. flow rate 10080 m³/h | Horizontal or vertical single-stage submersible motor pump in close-coupled design, with various next-generation impeller types, for wet or dry installation, stationary or transportable version, with energy-saving motor and models for use in potentially explosive atmospheres. |
| Service water supply systems | Max. head 120 m | Disposal | Max. allowed working pressure 12 bar | Waste water treatment plants | Max. allowed fluid temperature 60 °C |
| Amarex NS | Technical Data | Main Applications | |
|---|---|---|---|
 |
Waste water management | Max. flow rate 10080 m³/h |
Vertical single-stage submersible motor pump for wet installation, with cutter (S), stationary or transportable version. Amarex N pumps are floodable, single-stage, single-entry close-coupled pump sets which are not self-priming. ATEX-compliant version available. |
| Service water supply systems | Max. head 120 m | Disposal | Max. allowed working pressure 12 bar | Waste water treatment plants | Max. allowed fluid temperature 60 °C |
